About These Items

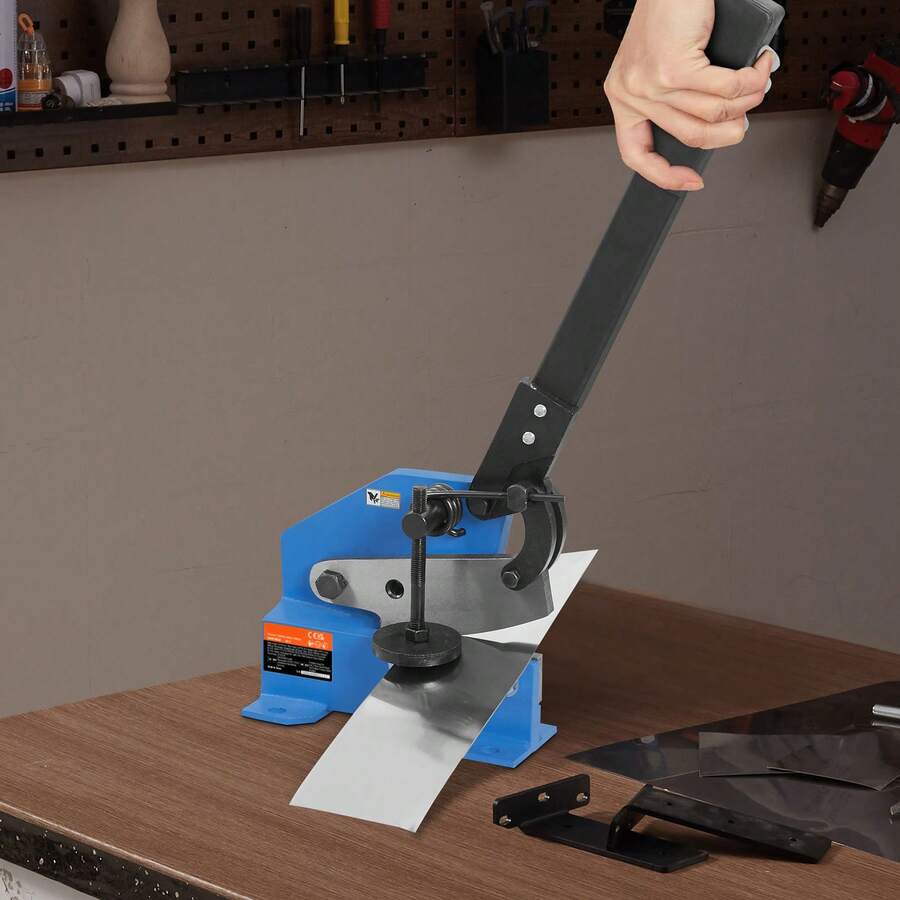

Cutting Versatility: These shears can cut metal plates up to 800 mm long and 6 mm thick, as well as round steel rods up to 13 mm in diameter. They are designed for demanding tasks in workshops, construction, or repair projects, eliminating the need for multiple tools.
High-Hardness T10 Steel Blades: Equipped with blades made of T10 steel with a hardness greater than 52 HRC and a thickness of 12 mm, these shears easily handle metals such as low- steel, aluminum, galvanized, tin-plated, alloys, and color-coated plates.
Clean, Burr-Free Cuts: Thanks to a blade gap of less than 0.07 mm, these tools pass the paper-cut test, resulting in clean, precise edges when cutting metals, without damaging the material or generating waste.
Ergonomic design with long handle: The handles, ranging from 230 mm to 800 mm, allow greater force to be applied with less effort, reducing fatigue during extended sessions. This significantly improves efficiency, especially during repetitive cuts or cutting hard materials.
Solid and stable structure: Each model includes a reinforced base up to 6 mm thick, ensuring stability during use. Table or floor bolt attachments prevent shifting, offering greater safety and confidence while cutting.
Key differences
The 800 mm, 41.8 kg long-cut shear stands out for its ability to cut large plates up to 1.5 mm thick continuously, thanks to its extended blade and 230 mm handle, ideal for repetitive work on large sheets.
The 270 mm, 23.6 kg model is more compact but maintains a large cutting capacity, including 13 mm steel rods. Its 800 mm handle facilitates powerful cuts with less effort.
The mid-size 190 mm (7.5 in) and 15.3 kg (33 lb) version offers good portability with a stable base and 600 mm (23.6 in) handle, while maintaining similar performance in materials up to 6 mm (0.2 in) thick.
The lightest model, with a 110 mm (4.3 in) cutting length and a weight of 10.2 kg (22.2 lb), is focused on light-to-medium tasks with excellent control and ease of use thanks to its compact design and 400 mm (15.7 in) handle.
All models share Q235/T10 materials and cutting precision, but differ in size, weight, and type of operation.
Specifications
Available models: 110 mm, 190 mm, 270 mm, and 800 mm cuts
Maximum cutting lengths:
- 110 mm
- 190 mm
- 270 mm
- 800 mm
Maximum cutting thickness: 6 mm (except 800 mm model: 1.5 mm)
Maximum diameter: 110 mm Steel rebar cutting capacity:
- 11 mm (110 mm model)
- 13 mm (190 mm and 270 mm models)
Compatible materials: Low- steel, aluminum, galvanized, alloys, color coatings
Blade material: T10 steel (>52 HRC), 12 mm thick
Blade : <0.07 mm
Mounting method: Table or floor bolts depending on the model
Structural material: Q235
Treatment: Painted + blackened (blue)
Dimensions (mm):
- 110 mm: 240 x 100 x 630 mm
- 190 mm: 350 x 100 x 720 mm
- 270 mm: 450 x 100 x 1130 mm
- 800 mm: 1350 x 220 x 1050 mm
Handle Length:
- 400 mm (110 mm model)
- 600 mm (190 mm model)
- 800 mm (270 mm model)
- 230 mm (800 mm model)
Product Weight:
- 10.2 kg (110 mm model)
- 15.3 kg (190 mm model)
- 23.6 kg (270 mm model)
- 41.8 kg (800 mm model)
Package Contents
110 mm, 190 mm, and 270 mm models:
1 x Manual Shear
1 x Handle
2 x M12 x 40 Bolts
2 x Washers 12 mm flats
1 x Instruction Manual
800 mm Model:
1 x Long-Cut Shear
2 x Brackets
4 x Bolts
4 x Nuts
8 x Washers
Product Details
| Material |
Carbon Steel |
| Features |
Multipurpose |
| Usage |
Metal |
| Color |
5 Inches |
| SKU |
sr25093056459665406 |
