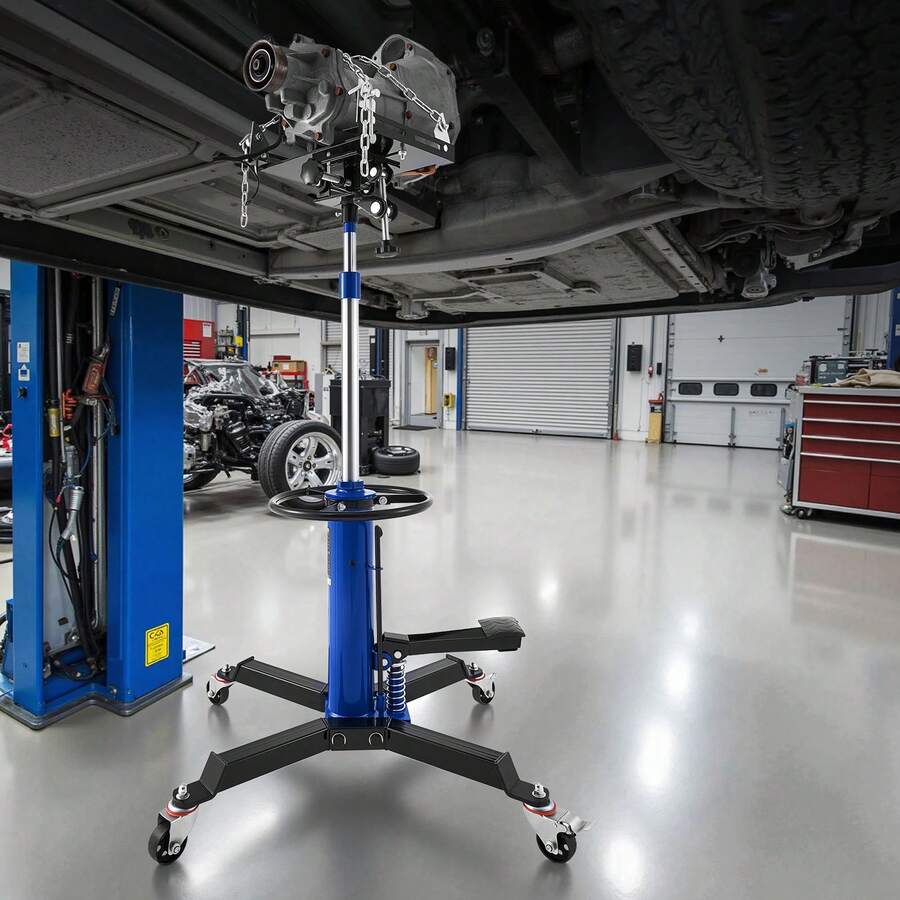

About These Products These hydraulic transmission jacks feature a robust Q235B steel frame with a lifting capacity of 600 kg or 750 kg, ideal for lifting transmissions, axles, and heavy vehicle components. The platform supports up to 500 kg of load during transport, ensuring reliable performance in automotive workshops. Both models allow lifting from 880 mm to 1760 mm (34.6" to 69.3"), providing ample and adaptable workspace. This versatility facilitates maintenance and repair tasks on raised vehicles, guaranteeing precise adjustment to the required height. The jack tray is fully adjustable with 360° rotation and up to 30° tilt, allowing for precise transmission positioning. Furthermore, its mounting plate is width-adjustable, adapting to multiple transmission types and securing the workpiece with chains for added safety. The foot-operated hydraulic mechanism eliminates physical effort when lifting, allowing for smooth control when raising or lowering the transmission. The manually operated return valve provides a controlled descent, minimizing sudden falls or accidents during use. With an X-shaped base and four swivel casters (two with brakes), these jacks offer freedom of movement in the workshop and complete stability while working. The braking system securely locks the jack in place, preventing unintentional movement. Key Differences The 600 kg model uses a double piston for more balanced lifting, while the 750 kg model employs a single piston, offering greater load capacity at a slightly lower weight. Both share similar dimensions and functions, but the 750 kg model is better suited for heavier loads thanks to its added strength. The 600 kg model is ideal for medium-duty tasks, offering greater stability and control thanks to its double-piston design. Specifications Model: GW-0.6 (600 kg) / GW-0.8 (750 kg) Type: Foot-operated sleeve cylinder Lifting capacity: 1322 lb / 600 kg or 1660 lb / 750 kg Carrying capacity: 1100 lb / 500 kg Piston: Double (600 kg) / Single (750 kg) Minimum height: 34.6" / 880 mm Maximum height: 69.3" / 1760 mm Lifting stroke: 34.6" / 880 mm Frame material: Q235B steel Piston rod material: 45# steel Net weight: 100.3 lb / 45.5 kg (600 kg) or 98.5 lb / 44.7 kg (750 kg) Dimensions: 28.9 x 24.6 x 38.2–73" / 735 x 625 x 970–1855 mm Package Contents 1 Main Unit 1 Cylinder 1 Tray Mounting Bracket 2 Claw Assemblies 1 Circle 2 Support Legs 1 Pedal 4 Casters 4 Screws 4 Flat Washers 1 Repair Kit (7 Seals) 1 User Manual 2 Leg Spacers
| Material | Carbon Steel |
| Color | 1660 Lbs |
| SKU | sq251212173973776848315 |
